Understanding Cisco ASA Connection Flags

| Comments

Have you ever wondered what the flags meant when you issued the show conn or show connections command? This post will demystify that for you.

Viewing the Connections

Use the command show conn to view the connections currently going through the firewall. It should look something like this:

TCP VPN 10.99.55.44(18.17.16.15):11515 inside 10.88.77.66:30854, idle 0:02:48, bytes 178, flags UIO
TCP outside 77.66.55.44:49368 VPN 15.15.15.15:443, idle 0:00:21, bytes 100531, flags UfrIOB
UDP VPN 10.17.17.17:8500 inside 10.20.20.20:4167, idle 0:01:38, bytes 616, flags -
TCP VPN 77.66.55.44:30031 inside 10.20.20.20:51716, idle 0:00:11, bytes 0, flags U
TCP outside 10.20.20.20:10101 outside 10.30.30.30:4450, idle 0:00:14, bytes 0, flags SaAB
TCP outside 20.30.40.50:45174 inside 10.30.30.30:443, idle 0:00:05, bytes 0, flags aB

Understanding the Flags

In earlier versions of Cisco ASA versions it used to list the following table when issuing the show conn command.

  • A – awaiting inside ACK to SYN
  • a – awaiting outside ACK to SYN
  • B – initial SYN from outside
  • C – CTIQBE media
  • D – DNS
  • d – dump
  • E – outside back connection
  • F – outside FIN
  • f – inside FIN
  • G – group
  • g – MGCP
  • H – H.323
  • h – H.225.0
  • I – inbound data
  • i – incomplete
  • k – Skinny media
  • M – SMTP data
  • m – SIP media
  • O – outbound data
  • P – inside back connection
  • q – SQL*Net data
  • R – outside acknowledged FIN
  • R – UDP RPC
  • r – inside acknowledged FIN
  • S – awaiting inside SYN
  • s – awaiting outside SYN
  • T – SIP
  • t – SIP transient
  • U – up

Adding it up

Often a single flag isn’t seen, but multiple flags will be displayed. Use this handy guide to understand flag combinations.

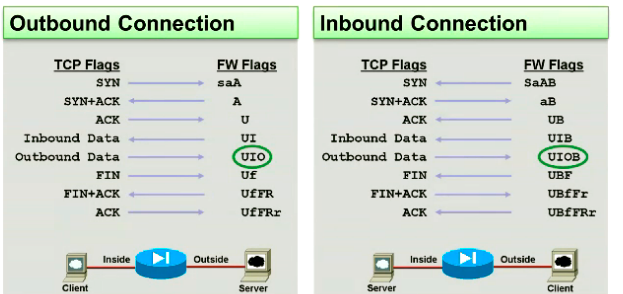

ASA Conn Flags IMG

The green circles in the image above indicates two way traffic is seen for that connection which means the connection is good and healthy usually.

Case Studies

Let’s look at a few examples. Suppose you see the lines in the ‘show conn’ output.

TCP VPN 10.99.55.44(18.17.16.15):11515 inside 10.88.77.66:30854, idle 0:02:48, bytes 178, flags UIO

This traffic flow has completed the 3 way TCP handshake (U), has had both inbound (I) packet and outbound (O) packets.



TCP outside 77.66.55.44:49368 VPN 15.15.15.15:443, idle 0:00:21, bytes 100531, flags UfrIOB

This traffic flow originated from the outside (B), has completed the 3 way TCP handshake (U), has had both inbound (I) packet and outbound (O) packets. This flow also saw a fin packet sent to the inside (f) and the inside also acknowledged the fin ®.



UDP VPN 10.17.17.17:8500 inside 10.20.20.20:4167, idle 0:01:38, bytes 616, flags -

This flow has no flags because it’s a UDP packet and therefore is stateless.



TCP VPN 77.66.55.44:30031 inside 10.20.20.20:51716, idle 0:00:11, bytes 0, flags U

This flow is just completing the 3 way handshake (U).



TCP inside 10.20.20.20:10101 outside 10.30.30.30:4450, idle 0:00:14, bytes 0, flags SaAB

A SYN was sent from 10.20.20.20 on the inside to 10.30.30.30 on the outside.



TCP outside 20.30.40.50:45174 inside 10.30.30.30:443, idle 0:00:05, bytes 0, flags aB

A SYN+ACK has been seen coming from the outside coming in.
